Mac mini Technical Specifications


Model 1
Model 2
Model 3
Model 4
Finish
Mac mini, front, two Thunderbolt ports, status indicator light and headphone jack, tapered black base at bottom, flat top, rounded sides, straight edges, silver color

Silver

Chip

Apple M6 chip

  • 12‑core CPU with 2 super cores, 4 performance cores, and 6 efficiency cores
  • 12-core GPU
  • Neural Accelerators
  • Hardware-accelerated ray tracing
  • Dual 16-core Neural Engine
  • 153GB/s memory bandwidth

Media Engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Video decode engine
  • Video encode engine
  • ProRes encode and decode engine
  • AV1 decode

Not configurable

Apple M6 chip

  • 12‑core CPU with 2 super cores, 4 performance cores, and 6 efficiency cores
  • 12-core GPU
  • Neural Accelerators
  • Hardware-accelerated ray tracing
  • Dual 16-core Neural Engine
  • 153GB/s memory bandwidth

Media Engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Video decode engine
  • Video encode engine
  • ProRes encode and decode engine
  • AV1 decode

Not configurable

Apple M6 chip

  • 12‑core CPU with 2 super cores, 4 performance cores, and 6 efficiency cores
  • 12-core GPU
  • Neural Accelerators
  • Hardware-accelerated ray tracing
  • Dual 16-core Neural Engine
  • 170GB/s memory bandwidth

Media Engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Video decode engine
  • Video encode engine
  • ProRes encode and decode engine
  • AV1 decode

Not configurable

Apple M5 Pro chip

  • 15-core CPU with 5 super cores and 10 performance cores


  • 16-core GPU
  • Neural Accelerators
  • Hardware-accelerated ray tracing
  • 16-core Neural Engine
  • 307GB/s memory bandwidth

Media Engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Video decode engine
  • Video encode engine
  • ProRes encode and decode engine
  • AV1 decode

Configurable to:

  • M5 Pro with 18‑core CPU and 20‑core GPU
Memory

16GB

  • 16GB unified memory

Configurable to:

  • 24GB or 32GB (170GB/s memory bandwidth)

16GB

  • 16GB unified memory

Configurable to:

  • 24GB or 32GB (170GB/s memory bandwidth)

24GB

  • 24GB unified memory

Configurable to:

  • 32GB

24GB

  • 24GB unified memory

Configurable to:

  • 48GB or 64GB
Storage1

256GB

  • 256GB SSD

Configurable to:

  • 512GB, 1TB, or 2TB

512GB

  • 512GB SSD

Configurable to:

  • 1TB or 2TB

512GB

  • 512GB SSD

Configurable to:

  • 1TB or 2TB

512GB

  • 512GB SSD

Configurable to:

  • 1TB, 2TB, 4TB, or 8TB
Display Support

M6

Supports up to three external displays using Thunderbolt and HDMI ports:

  • Three displays: Two displays up to a native resolution of 6K at 60Hz or 4K at 165Hz, plus a third display up to 5K at 60Hz over Thunderbolt or 4K at 60Hz over HDMI
  • Up to two displays: One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz, plus a second display up to 5K at 60Hz over Thunderbolt or 4K at 60Hz over HDMI
  • Supports up to two external displays over a single Thunderbolt port
  • Thunderbolt 4 (USB-C) ports support native DisplayPort 1.4 speeds
  • Supports variable refresh rate (VRR), HDR, and multichannel audio

M5 Pro

Supports up to three external displays over any combination of Thunderbolt and HDMI ports:

  • Three displays up to a native resolution of 6K at 60Hz or 4K at 165Hz
  • Up to two displays: One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz, plus a second display up to 5K at 120Hz or 4K at 200Hz
  • Supports up to three external displays over a single Thunderbolt port
  • Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
  • Supports variable refresh rate (VRR), HDR, and multichannel audio

Learn more about connecting a display to your Mac

Video Playback
  • Supported formats include HEVC, H.264, AV1, and ProRes
  • HDR with Dolby Vision, HDR10+/HDR10, and HLG
Audio Playback
  • Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
Audio
  • Built-in speaker
  • 3.5 mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multichannel audio output
Connections and Expansion

On front:

  • Two USB-C ports with support for USB 3 (up to 10Gb/s)
  • 3.5 mm headphone jack

Mac mini, front, two Thunderbolt ports, status indicator light and headphone jack, tapered black base at bottom, flat top, rounded sides, straight edges, silver color
USB-C
3.5 mm headphone jack

On back (M6):

  • 2.5Gb Ethernet port (configurable to 10Gb Ethernet)
  • HDMI port

Three Thunderbolt 4 (USB-C) ports with support for:

  • Thunderbolt 4 (up to 40Gb/s)
  • USB 4 (up to 40Gb/s)
  • DisplayPort
  • Genlock, not available

Mac mini with M6, back, power socket, Ethernet port, HDMI port, three Thunderbolt ports
Ethernet
HDMI
Thunderbolt 4

On back (M5 Pro):

  • 2.5Gb Ethernet port (configurable to 10Gb Ethernet)
  • HDMI port

Three Thunderbolt 5 (USB-C) ports with support for:

  • Thunderbolt 5 (up to 120Gb/s)
  • USB 4 (up to 40Gb/s)
  • DisplayPort
  • Genlock2

Mac mini with M5 Pro, back, power socket, Ethernet port, HDMI port, three Thunderbolt ports
Ethernet
HDMI
Thunderbolt 5
Communications

Wireless

  • Apple N1 wireless networking chip
  • Wi‑Fi 7 (802.11be)3
  • Bluetooth 6
  • Thread networking technology

Ethernet

  • 100/1000/2500BASE-T Multi-Gigabit Ethernet (RJ-45 connector)
  • Configurable to 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
Size and

Weight
  • Height: 5.0 cm
  • Width: 12.7 cm
  • Depth: 12.7 cm
  • Weight (M6): 0.67 kg4
  • Weight (M5 Pro): 0.73 kg4
Mac mini, top, silver aluminum, square, rounded corners, glossy black Apple logo centered
12.7 cm 12.7 cm
Mac mini, front, two Thunderbolt ports, status indicator light and headphone jack, tapered black base at bottom, flat top, rounded sides, straight edges, silver color
5.0 cm
Electrical and Operating Requirements
  • Line voltage: 100–240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 155W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: –40° to 116° F (–40° to 47° C)
  • Relative humidity: 5% to 90% noncondensing
  • Operating altitude: tested up to 16,400 feet (5000 meters)
  • Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle5
In the Box
  • Mac mini
  • Power cord (1.8 m)

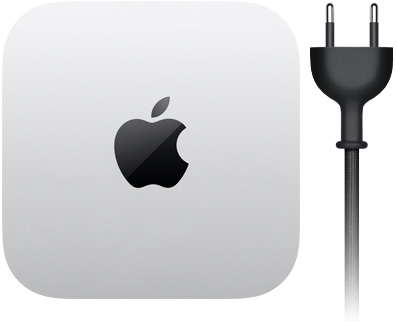

Mac mini, top, silver aluminum, square, rounded corners, glossy black Apple logo centered, black power cord with two-prong power plug
Apple Intelligence and Siri AI6

The next generation of Apple Intelligence is centered around you, integrated into your apps, and built with privacy. Apple Intelligence powers Siri AI — an entirely new version of Siri that’s more personal, conversational, and powerful, along with helpful features across apps.

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac mini. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.

Features include:

  • VoiceOver
  • Zoom
  • Motion, display, and text settings
  • Accessibility Keyboard
  • Switch Control
  • Closed Captions
  • Background Sounds
  • Live Speech
  •
Built-in Apps7

Mac mini and the Environment

See the Mac mini Product Environmental Report (PDF)

Progress toward Apple 2030

Apple 2030 is our goal to be carbon neutral across our value chain. We design our products to be less carbon intensive by prioritizing the use of recycled and renewable content and low-carbon materials while focusing on the energy efficiency of our software and hardware.

Materials

Mac mini is made with 50% recycled content,8 including:

  • 100% recycled aluminum in the enclosure and thermal module stage
  • 100% recycled copper in multiple thermal module components
  • 100% recycled copper plating in all Apple-designed printed circuit boards
  • 100% recycled gold plating and tin solder in all Apple-designed printed circuit boards
  • 80% recycled steel in multiple components including the logo and fan pillow

Packaging

  • 100% fiber‑based packaging9

Energy

  • 100% of manufacturing electricity for Mac mini is sourced from renewable electricity10
  • 100% of expected customer use electricity matched with low‑carbon electricity11
  • ENERGY STAR® certified12

Smarter chemistry13

All of the materials used in Apple products, accessories, and packaging are covered by the requirements of our Regulated Substances Specification, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report to understand Apple’s recent efforts in phasing out these chemistries.
